But you can't see that now. We will be posting daytime pictures so you can see the actual glass. We will be posting the yellow flames as well. We will tell you how to do this in the near future, really!
Ed

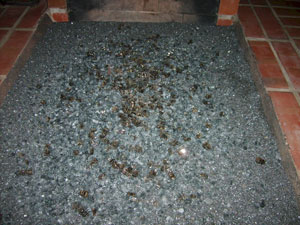

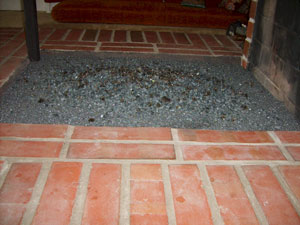

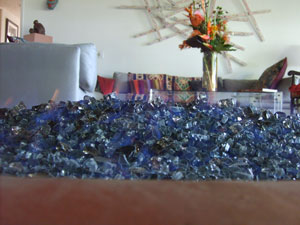

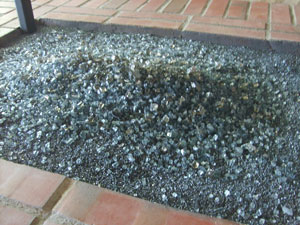

Here are the other shots you requested. I tried many angles, lights, etc., yet could not get an accurate picture of the natural light setting. The silicone carbide is so reflective that it goes to light grey in all of the shots, and the smoke glass looks pale green/blue where in reality it looks almost black.
Another description that may be even more appropriate of the daytime look is that of a neatly piled burned out fire, except that all of the “ash” is reflective and sparkly.
Can not explain why in some of the shots the flame appears greenish. The blue colored flames are not exactly right either. The real color is closer to ultraviolet than anything else.
Several of the shots, including 01, 29, and 50, have been taken from the same location. You can tell the ones taken at full open valve by the increased amount of color in the shots.
Additional photos in separate mailings
Keary

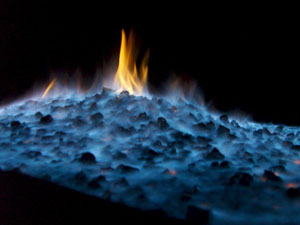

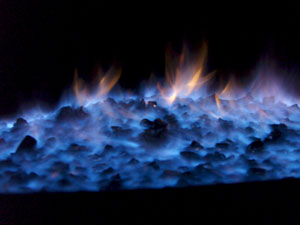

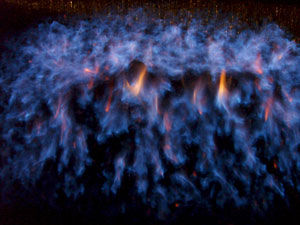

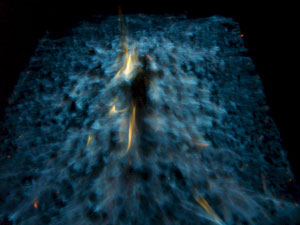

I am very happy with my “new” gas fireplace. I thought I would share with you the enclosed photos taken with an ordinary digital camera with no ambient light except the fire itself. The camera was placed in various locations around the fire on the hearth proper. Unfortunately the stills cannot depict the fire action. What is amazing about the fire is the low spread out blue flame pattern instead of the conventional tall yellow flames in the middle.
The fireplace is open on three sides 30”x40”, The pit was filled with coarse bagged lava rock form Home Depot approximately 1” deep to the bottom of the U shaped burner gas pipe with the holes pointing down. It was then topped with Moderustic fine lava rock to fill in the voids on the top leaving the bottom of the burner only slightly submerged below the layer of the finer lava rock from Moderustic..
The next layer was black sand followed by S----- C-----. The sand was mounded in the center over the burners. A sprinkling of grey glass over the SC and a topper of Bronze ˝” glass was sprinkled over the smaller sized matrix to finish. The final product is very dark and reflective with tiny reflections off of the s----- c------ and larger reflections off of the gradated glass during the day and in ambient light. It looks a little like a lava field that you might run across in the Mojave Desert near Barstow. Not at all showy, yet very subtle to the view in daylight.
The coarse lava rock on the bottom layer, with the finer layer on top to keep the gas in longer, acts as manifold carrying gas to all portion of the firebox floor covered with that material. I stopped the coarse rock short of the metal posts in a semi circular shape in plan and backfilled with sand so that the flame would not reach the posts. The visual result around the posts is that the gas reaching the end of the coarse material immediately goes upward creating a flowing arc of fire around the posts. This is seen as a blur in the photos.
The underlying coarse rock distributes the gas pretty evenly across the firebox floor creating a even matrix of small flames on the surface as it works its way up through the media. The extreme perimeter appears more active. There are more constant more steady flames from the mound. Because there is less gas at the perimeter, the gas there burns in horizontal spurts and appears like lightning bolts licking the edges of the firebox.
There are small vortexes of fire that form and sometimes work there way around the base of the mound on the center but usually preferring a particular area to hang out.
The overall effect is one of a dispersed flame. As if the entire bed of the fireplace is afire with a low blue flame. With all the lights out in the room it is quite magical. Not at all anything like a conventional yellow flame in the center. Due to the dispersion of the flame across the large firebox area, there is a lot of heat generated and dispersed into the room instead of up the flue. This is not a design for summer time nights.
Everyone who witnesses this flame is impressed with the “light show” quality of the burn.
In the future I plan to change out the media and experiment with different ways to direct the gas and resultant flame to achieve different effects.
Next time I am thinking of laying a pattern of coarse rock and infilling between the “arms” of coarse rock with sand so that the gas will follow the “arms” and come up in more predictable places, perhaps creating little vortexes or pyres at the ends of the “arms”.
Regards,
Keary Gregg
The pictures below are of:

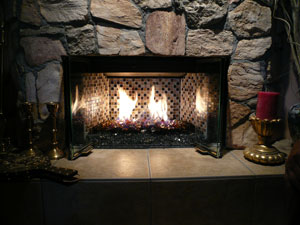

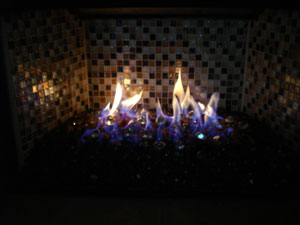

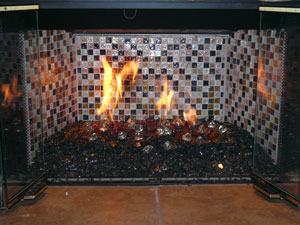

Bronze, Dark Red Orange Topper, Gold, Amber Topping, Scarlet Red and Diamonds. The back of the fireplace was done with Ceramic tiles.Very nice and in Palm Springs.

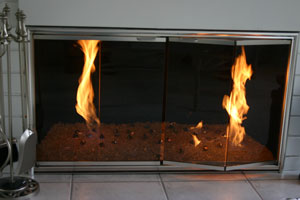

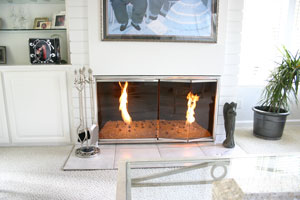

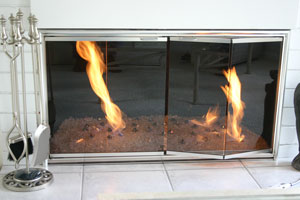

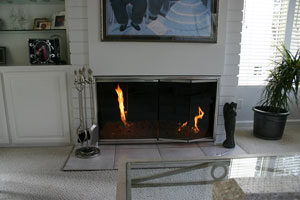

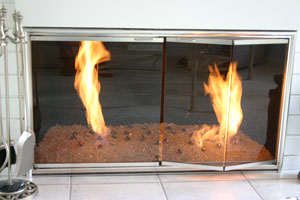

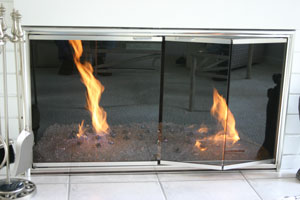

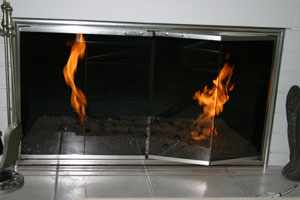

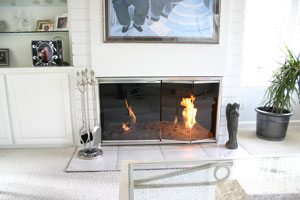

The pictures below are of a log converted fireplace in Newport Beach now we can even produce tornadoes! This fireplace has Starfire, Diamonds and a few cool fire tornadoes! We can control the size and duration of these little fire devils!
Great party favors, huh?
This is our latest venture and the first ones will be installed in a month or so. We will be posting pictures of the completed project. These are very futuristic Tiki Torches if that's what you would like to call them, enjoy.
This last one looks like Wilma Flintstone?
What we have done is create a vortex and added fire! These will be made available in all sizes, colors and shapes. Stay tuned for more installation pictures!
Ed
Our newest line of burners are the star burners available in 12", 18" 24" and 30" in stainless steel and steel
30" star
24" star
12" star
These are also made in custom sizes as well. If you dream it, we can make it! These can be made with a base or with out. The can be made for propane or natural gas.
The fireplace below is in Hope Ranch, Santa Barbara, California. First we installed the double "H" burner.
Then we pour 2" of crushed lava rock as a base over the burners.
Now we pour the Black Magic (you'll soon see why).
Then we add one match and poof, BLUE FLAMES!
Then we start to add 8" fireballs
A total of 32 8" fireballs in natural color were added
The customer had a green theme and so we topped it off with our Green coating.
As the evening went on the ambient heat drew the flames higher trough the fireballs and the blue was just pure magic. The End!

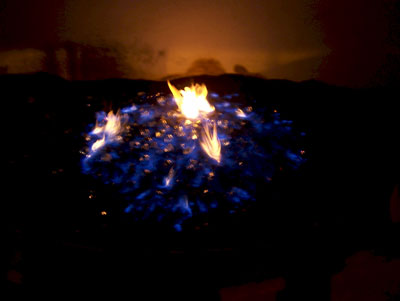

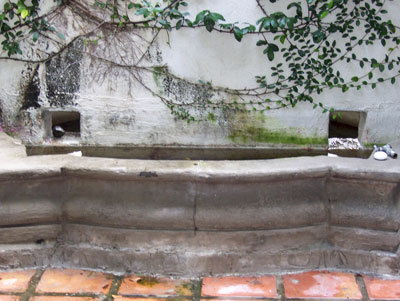

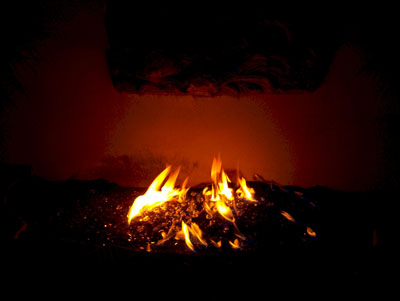

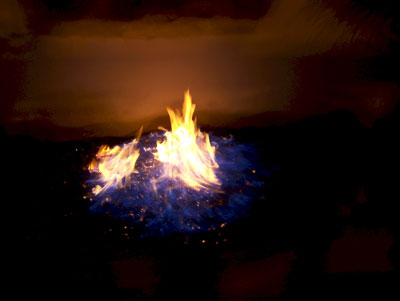

The fountain below was converted to a fire pit with
black magic. We use a several hundred pounds of lava rock then topped
it with crushed lava rock to keep the materials from falling through.
After we placed the black magic on the lava rock Craig topped it with
clear pyrite (clear with sterling silver coating) clear diamonds,
black, black reflective and now he has one cool fire feature. We will
show you from beginning to end.
NASTY!
Here you can see the lightly coated black magic with our glass for accents and sparkle.

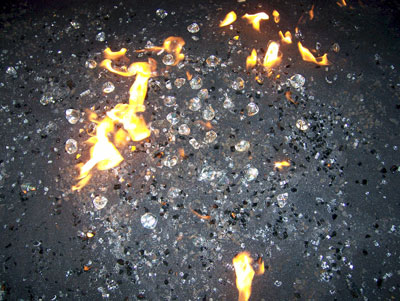

Here you can see the diamonds. When you see the
diamonds in the fire they appear to be melting but actually they are
only reflecting inside which looks like they are meting. They are made
from crystal.

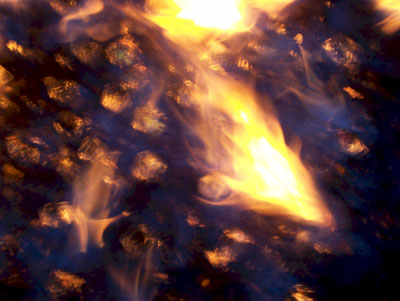

And with everything just right you have the black magic look!
Nice Flames!

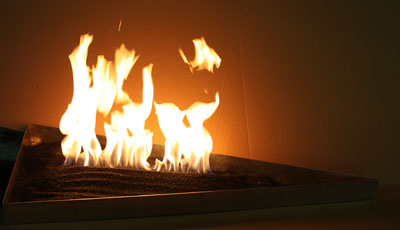

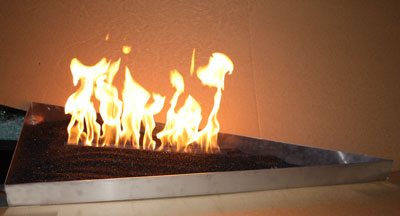

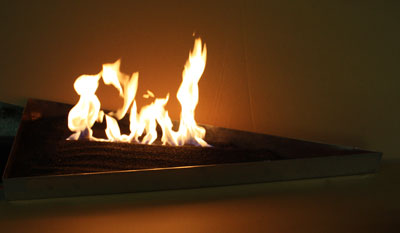

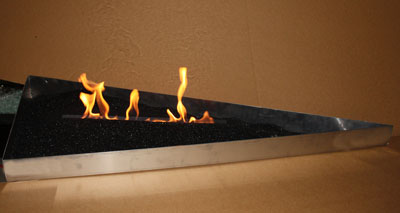

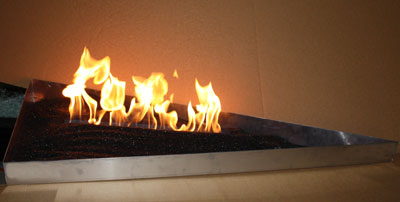

The next several pictures are of a 24" x 54" x 3 1/2"
deep triangle pan with our first Ribbon Burner! It lays in a bed of
black silicone carbide "Black Magic"
The flames measured 24" tall below! Because of the design we implied to this new burner they seem to be coming from nowhere!
We
didn't fill the pan with sand just because. These ribbon burners will
be available very soon and we will post dozens more pictures as we have
time to post them for you to see. The will be available in steel or
stainless steel. With or with out a pan. This burner was built for
another customer in Palm Springs for their fireplace and we will post
pictures of it as well.
This pan will be installed in a custom table built by the customer in Palm Springs.
